Charging station

Filter dryers

Filter dryers for charging stations compatible with: ISC/ROBINAIR/TEXA ecc.


Description

Dryer filters in charging stations (whether for compressed air, refrigerants in HVAC/AC systems, or technical gases) play a crucial role in ensuring system protection and reliability.

Their main function is to remove moisture and impurities from the fluid circulating through the system.

Technical features

Moisture removal: Water or vapor can cause corrosion, ice formation at expansion points (valves, nozzles), and damage to components. In refrigerant systems, moisture may react with oil and gas, forming corrosive acids.
Protection from solid impurities: They trap particles such as dust, metal shavings, degraded oil residues, or oxides that could clog valves and small passages.
Improved efficiency and lifespan: A clean, dry circuit operates with more stable pressures and temperatures, reducing maintenance and failures.
Safety: They prevent malfunctions that could lead to overpressure, blockages, or even explosion risks in high-pressure systems.

For further information, please request the technical data sheet from our agents.


P/N 15.002W

LENGHT: 234 mm

FITTINGS: 3/8” OR

Ø: 76 mm


P/N 15.004W

LENGHT: 294 mm

FITTINGS: 1/4” OR

Ø: 90 mm

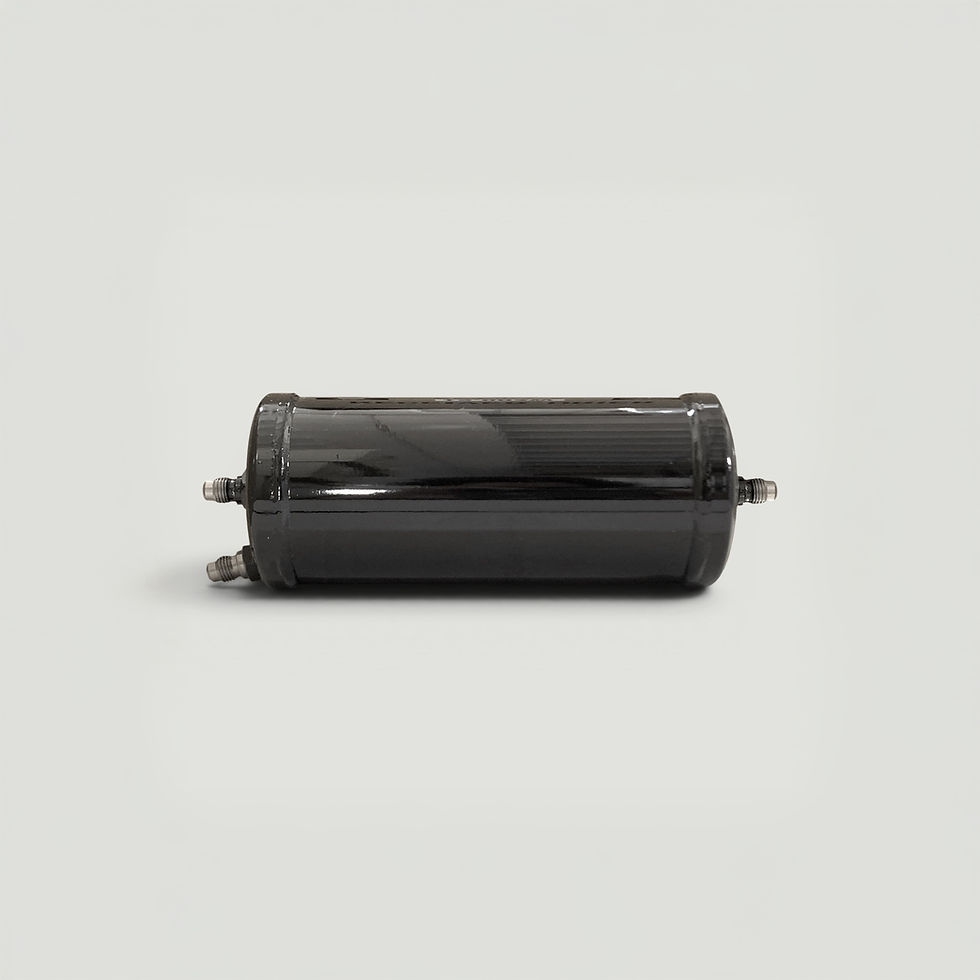

P/N 15.005

LENGHT: 230 mm

FITTINGS: 1/4” FLARE

Ø: 76 mm

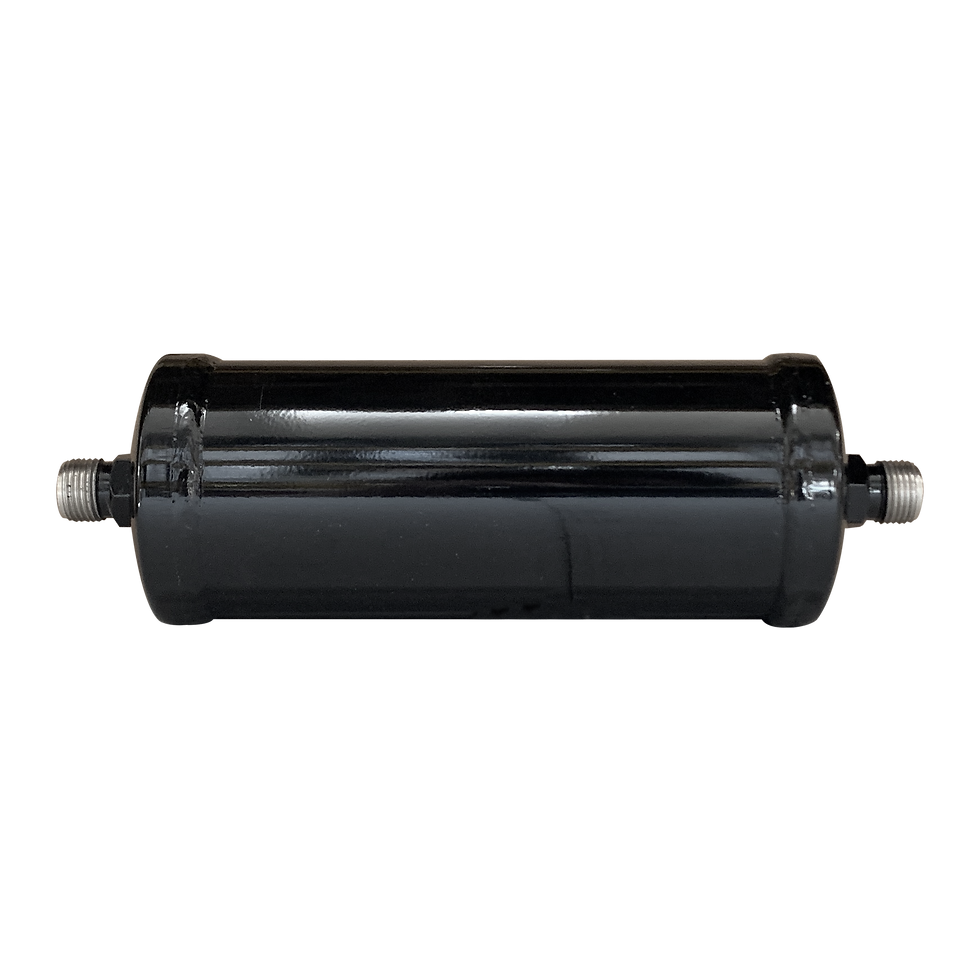

P/N 15.006W

LENGHT: 207 mm

FITTINGS: 3/8” OR

Ø: 60 mm


P/N 15.007

LENGHT: 160 mm

FITTINGS: 1/4” FLARE

Ø: 76 mm


P/N 15.010

LENGHT: 158 mm

FITTINGS: 1/4” FLARE

Ø: 60 mm


P/N 15.011

LENGHT: 291,5 mm

FITTINGS: 1-1/2”-12UNF-2A

Ø: 76 mm


P/N 15.013W

LENGHT: 240 mm

FITTINGS: 3/8” OR

Ø: 76 mm


P/N 15.014W

LENGHT: 238 mm

FITTINGS: 3/8” OR

Ø: 76 mm


P/N 15.048

LENGHT: 243 mm

FITTINGS: 3/8” FLARE

Ø: 76 mm


P/N 15.050

LENGHT: 170 mm

FITTINGS: 3/8” FLARE

Ø: 76 mm


Ø:

OUT

IN

P/N 15.058

LENGHT: 275 mm

IN (Øxdeep):

13,7x3,5 mm / 11,7x8,0 mm / 10,0x6,9

OUT (Øxdeep):

10,6x3,4 mm / 8,6x5,7 mm / 7,0x10,2

Ø: 9,02 MM (THROUGH)

Ø: 67mm


P/N 15.059

LENGHT: 213 mm

FITTINGS: 1-3/8’’-12UNF-2A

Ø: 76 mm


P/N 15.062W

LENGHT: 157 mm

FITTINGS: 1/4” FLARE

Ø: 76 mm


P/N 15.063

LENGHT: 228 mm

FITTINGS: 1/4” FLARE

Ø: 76 mm


P/N 15.064

LENGHT: 174 mm

FITTINGS: 3/8” OR

Ø: 76 mm



11.075 (Product Beautifier).jpg

+

P/N 20.4002

Vacuum pump oil iso 68 - 500mL

P/N 11.075

Bubble leak detector spray - 100mL


P/N 88.800

1x Filter P/N 15.007


P/N 88.801

1x Filter P/N 15.010


P/N 88.802

1x Filter P/N 15.005


P/N 88.803

1x Filter P/N 15.004W


P/N 88.804

1x Filter P/N 15.006W


P/N 88.805

1x Filter P/N 15.002W


P/N 88.806

1x Filter P/N 15.010


P/N 88.809

1x Filter P/N 15.013W


P/N 88.810

1x Filter P/N 15.011


P/N 88.811

1x Filter P/N 15.014W

+
