Maintenance

Spring lock

Discover our selection of :

adapters, reductions, connections and quick couplers to connect hoses, equipment, cylinder adapter, caps, sealing tools, valve cores and o-rings.


Description

In air conditioning (AC) systems, the term spring-lock (or springlock coupling) refers to a type of quick-connect fitting used to join pipes and components in the refrigerant circuit, especially in the high- and low-pressure lines of automotive A/C or HVAC systems.

Technical features

Purpose:

  • Ensures an airtight seal in the refrigerant circuit (R134a, R1234yf, etc.), preventing leaks.

  • Allows for fast assembly and disassembly during maintenance or component replacement (compressor, condenser, evaporator).

  • Provides resistance to pressure and vibration typical of AC systems.

For further information, please request the technical data sheet from our agents.


P/N 88.035/10

G6
int. Ø 13,3 mm - Depth. 3,1 mm

G8
int. Ø 16,3 mm - Depth. 3,1 mm

G10
int. Ø 19,3 mm - Depth. 3,1 mm

G12
int. Ø 22,3 mm - Depth. 3,1 mm

pcs 10

P/N 88.036/10

pcs 10

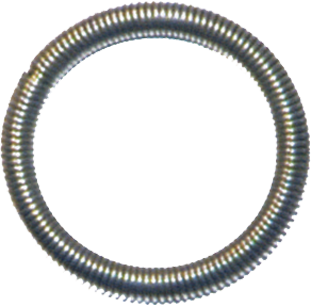

P/N 88.037/10

pcs 10

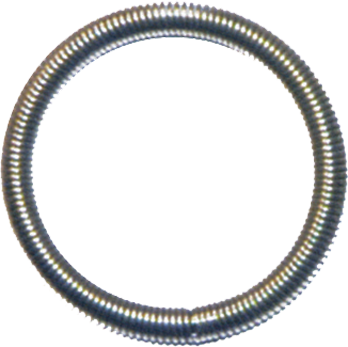

P/N 88.038/10

pcs 10
